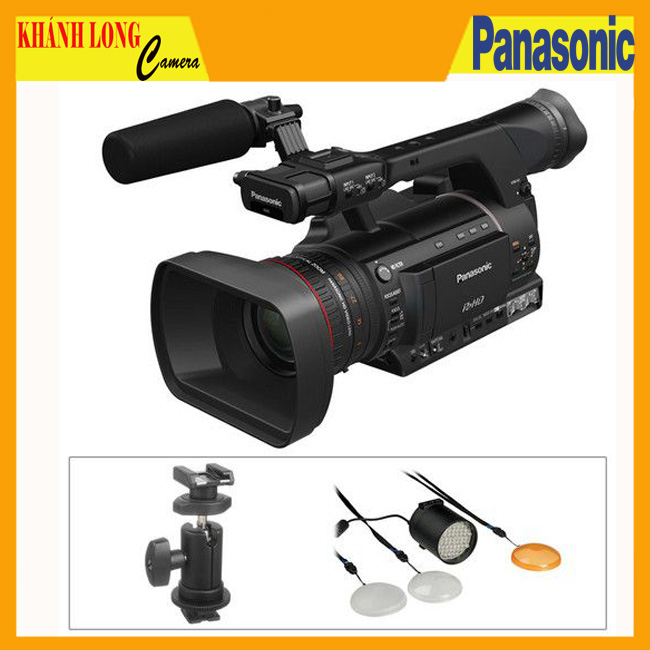

This Panasonic AG-HPX250 P2 HD Handheld Camcorder with Lighting Kit from B&H packages the amazingly small yet full-featured AG-HPX250 camcorder with an on-camera LED light and a swivel mount for the light.
The Panasonic AG-HPX250 P2 HD Handheld Camcorder is the first handheld professional camcorder model to record the extremely high-quality AVC-Intra 100 Mb/s (10-bit 4:2:2) codec. Featuring an integrated 22x zoom lens and a 2.2 Mp 1/3"-type 3MOS imager, the versatile HPX250 records not only AVC-Intra but also several flavors of DVCPRO (including DVCPRO HD) as well as DV. A variety of frame rates are possible in DVCPRO modes, for native slow- and fast-motion effects.
The kit's dimmable LED fixture outputs the equivalent of 50W balanced daylight yet draws a mere 3W. It can be oriented precisely atop the camcorder by using the kit's swivel shoe adapter.
| General Specifications | Supply Voltage | DC 7.2 V (when the battery is used) DC 7.9 V (when the AC adaptor is used) |
|
|---|---|---|---|
| Power Consumption | 15.0 W (when the LCD monitor is used) | ||
| Operating Temperature | 0 °C to 40 °C (32 °F to 104 °F) | ||
| Operating Humidity | 10% to 80% (no condensation) | ||
| Weight | Approx. 2.5 kg (5.5 lb) excluding battery and accessories | ||
| Dimensions (W x H x D) | 18.0 cm x 19.5 cm x 43.8 cm excluding battery, accessories and protrusions | ||
| Camera Section | Pickup Devices | 1/3-type progressive, 2.2-megapixel, 3MOS sensor | |
| Effective Pixels | 1920 (H)×1080 (V) | ||
| Lens | Optical image stabilizer lens, 22x motorized zoom, F1.6 – 3.2 (f=0.39 cm – 8.6 cm), 3.5 cm conversion: 2.8 cm – 61.6 cm (16:9) | ||
| Filter Diameter | 7.2 cm | ||
| Optical System | Prism color separation | ||
| ND filter | OFF, 1/4, 1/16, 1/64 | ||
| Minimum Shooting Distance | Approx. 1 m | ||
| Hood | Large-sized lens hood with wide angle of view | ||
| Gain Settings | 0/+3/+6/+9/+12/+15/+18/+24/+30 dB, (+24 dB, +30 dB: USER SW allocation only) | ||
| Shutter Speed Settings | 60i/60p mode: 1/60 (OFF), 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000 sec 30p mode: 1/30 (OFF), 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000 sec 24p mode: 1/24 (OFF),1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000 sec 50i/50p mode: 1/50 (OFF),1/60, 1/120, 1/250, 1/500, 1/1000, 1/2000 sec 25p mode: 1/25 (OFF),1/50, 1/60, 1/120, 1/250, 1/500, 1/1000, 1/2000 sec |
||
| Slow Shutter | 60i/60p mode: 1/15 sec., 1/30 sec 30p mode: 1/7.5 sec., 1/15 sec 24p mode: 1/6 sec., 1/12 sec 50i/50p mode: 1/12.5 sec., 1/25 sec 25P mode: 1/6.25 sec., 1/12.5 sec |
||
| Synchro Shutter | 60i/60p mode: 1/60.0 sec. to 1/249.8 sec 30p mode: 1/30.0 sec. to 1/249.8 sec 24p mode: 1/24.0 sec. to 1/249.8 sec 50i/50p mode: 1/50.0 sec. to 1/250.0 sec 25p mode: 1/25.0 sec. to 1/250.0 sec |
||
| Shutter Opening Angle | 3 degrees to 359.5 degrees in 0.5 degree increments | ||
| Frame Rates | 59.94 Hz mode: 1080p: 1/2/4/6/9/12/15/18/20/21/22/24/25/26/ 27/28/30 fps (frames per second) 17 step 720p: 1/2/4/6/9/12/15/18/20/21/22/24/25/26/ 27/28/30/32/34/36/40/44/48/54/60 fps, 25 step 50 Hz mode: 1080p: 1/2/4/6/9/12/15/18/20/21/22/23/24/25 fps (frames per second) 14 step 720p: 1/2/4/6/9/12/15/18/20/21/22/23/24/25/ 26/27/28/30/32/34/37/42/45/48/50 fps, 25 step |
||
| Sensitivity | 59.94 Hz mode: (at 2000 lx, 3200 K, 89.9% reflection) F7 (1080/59.94i, P.A.P FILTER: TYPE2) F10 (1080/59.94i, P.A.P FILTER: TYPE1) 50 Hz mode: (at 2000 lx, 3200 K, 89.9% reflection) F8 (1080/50i, P.A.P FILTER: TYPE2) F11 (1080/50i, P.A.P FILTER: TYPE1) |
||
| Minimum Illumination | 0.2 lx (F1.6, Gain +30 dB, shutter speed 1/30 sec., P.A.P FILTER: TYPE1) | ||
| Digital Zoom | ×2, ×5, ×10 | ||
| Memory Card Recorder Section | Recording Media | P2 card | |
| Recording Formats | AVC-Intra 100/AVC-Intra 50/DVCPRO HD/ DVCPRO50/DVCPRO/DV formats switchable | ||
| Recording/Playback Time*sup1/supwith a 64 GB P2 card | AVC-Intra 100/DVCPRO HD | approx. 64 min | |
| AVC-Intra 50/DVCPRO50 | approx. 128 min | ||
| DVCPRO/DV | approx. 256 min | ||
| Recording/Playback Time*sup1/supwith a 32 GB P2 card | AVC-Intra 100/DVCPRO HD | approx. 32 min | |
| AVC-Intra 50/DVCPRO50 | approx. 64 min | ||
| DVCPRO/DV | approx. 128 min | ||
| Recording/Playback Time*sup1/supwith a 16 GB P2 card | AVC-Intra 100/DVCPRO HD | approx. 16 min | |
| AVC-Intra 50/DVCPRO50 | approx. 32 min | ||
| DVCPRO/DV | approx. 64 min | ||
| Digital Video Specification | Recorded Video Signals | 1080/59.94i, 1080/29.97p, 1080/29.97pN, 1080/23.98p, 1080/23.98pA, 1080/23.98pN, 720/59.94p, 720/29.97p, 720/29.97pN, 720/23.98p, 720/23.98pN, 480/59.94i, 480/29.97p, 480/23.98p, 480/23.98pA, 1080/50i, 1080/25p, 1080/25pN, 720/50p, 720/25p, 720/25pN, 576/50i, 576/25p | |
| Sampling Frequency | AVC-Intra 100/DVCPRO HD: Y: 74.1758 MHz, PB/PR: 37.0879 MHz (59.94 Hz) Y: 74.2500 MHz, v: 37.1250 MHz (50 Hz) DVCPRO50: Y: 13.5 MHz, PB/PR: 6.75 MHz DVCPRO: Y: 13.5 MHz, PB/PR: 3.375 MHz | ||
| Quantizing | AVC-Intra 100/AVC-Intra 50: 10 bits DVCPRO HD/DVCPRO50/DVCPRO/DV: 8 bits |
||
| Video Compression | AVC-Intra 100/AVC-Intra 50: MPEG-4 AVC/H.264 Intra Profile DVCPRO HD: DV-Based Compression (SMPTE 370M) DVCPRO50/DVCPRO: DV-Based Compression (SMPTE 314M) DV: DV Compression (IEC 61834-2) |
||
| Digital Audio Specification | Recording Audio Signal | AVC-Intra 100/AVC-Intra 50/DVCPRO HD: 48 kHz/16 bits, 4CH DVCPRO50: 48 kHz/16 bits, 4CH DVCPRO/DV: 48 kHz/16 bits, 2CH/4CH switchable |
|
| Video Input/Output | GENLOCK IN | BNC × 1, 1.0 V [p-p], 75Ω | |
| VIDEO OUT | Pin jack × 1, 1.0 V [p-p], 75Ω | ||
| SDI OUT | BNC × 1, 0.8 V [p-p], 75Ω, HD/SD switching via menu, 10 bit 4:2:2 via camera through out | ||
| HDMI OUT | HDMI TypeA | ||
| Audio Input/Output | Built-In MIC IN | Supports stereo microphones | |
| AUDIO IN | XLR 3 pin × 2 (INPUT 1, INPUT 2) LINE/MIC/+48 V switchable LINE: 0 dBu MIC: –40 dBu/–50d Bu/–60 dBu switching via menu |
||
| AUDIO OUT | Pin jack × 2 (CH1/CH2), Output: 316 mV, 600 Ω | ||
| Headphone | ø0.35 cm stereo mini jack × 1 | ||
| Other Input/Output | TC IN/OUT | BNC× 1 IN: 0.5 V [p-p] to 8 V [p-p], 10 kΩ OUT: low impedance, 2.0±0.5 V [p-p] |
|
| Camera Remote | 0.25 cm diameter, Super mini jack × 1 (ZOOM, S/S) 0.35 cm diameter Mini jack × 1 (FOCUS, IRIS) |
||
| IEEE 1394*sup2/sup | 6 pin, digital input/output (compliant with IEEE 1394) | ||
| USB 2.0 (DEVICE)*sup2/sup | Type-miniB, 4 pin USB (compliant with USB ver. 2.0) | ||
| USB 2.0 (HOST)*sup2/sup | Type-A, 4 pin USB (compliant with USB ver. 2.0) | ||
| Monitor, EVF and Seaker | LCD Monitor | 8.763 cm color LCD monitor with approx. 921,000 dots (16:9) | |
| EVF | 1.143 cm color LCD monitor with approx. 1,226,000 dots (16:9) | ||
| Internal Speaker | 2.0 cm diameter × 1 | ||
| Included Accessories | AC adaptor Battery charger, AC cord, DC cord, 5400 mAh battery pack, Wireless remote controller with button-type battery, Microphone holder, Eye cup, Shoulder strap, P2 card driver software install CD-ROM | ||
| Note | *1: The Recording/playback times listed left can be continuously recorded as one clip. The number of recording clips will reduce the left figures somewhat. *2: AG-HPX250EJ does not support input via IEEE 1394 and USB 2.0. Weight and dimensions are approximate. Specifications are subject to change without notice. |
||
